Home > products > Anesthesia Airway Devices > Cuffed Nasal Endotracheal Tube 6.5mm Nasal Rae Tube Intubation

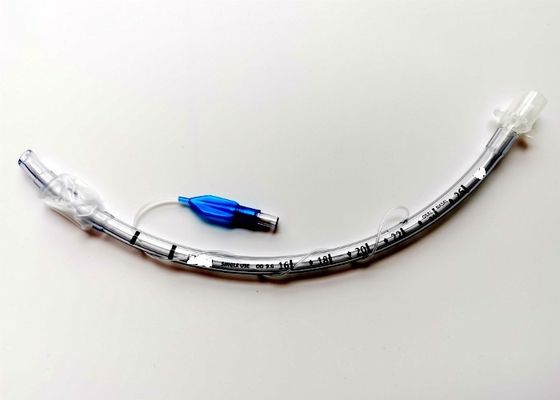

Cuffed Nasal Endotracheal Tube 6.5mm Nasal Rae Tube Intubation

Product Details

Place of Origin: CHINA

Brand Name: AVACARE

Certification: ISO13485, CE0123

Model Number: 6.5mm

Payment & Shipping Terms

Minimum Order Quantity: 100 units

Price: negotiable

Packaging Details: Paper-plastic bag packaging, sterilization, small packaging, 100 units/inner box, 200 units / carton

Delivery Time: 20-30 working days

Payment Terms: L/C, T/T

Supply Ability: 300000units / month

Get Best Price
Highlight:

Cuffed Nasal Endotracheal Tube

,

balloon Nasal Endotracheal Tube

,

6.5mm nasal rae tube intubation

Name:
Standard Endotracheal Tube Cuffed
Material:
Pvc
Parts:
X Ray Line, Murphy Eyes With Balloon
Type:
Medical Grade
Size:
6.5mm
Use:
Endotracheal Tube
Properties:
Medical Materials & Accessories
Instrument Classification:
Class II
Sample:
Free
Cuff:
Yes
Usage:
Free
Name:
Standard Endotracheal Tube Cuffed
Material:
Pvc
Parts:
X Ray Line, Murphy Eyes With Balloon
Type:
Medical Grade
Size:
6.5mm
Use:
Endotracheal Tube
Properties:
Medical Materials & Accessories
Instrument Classification:
Class II
Sample:
Free
Cuff:
Yes
Usage:
Free
Cuffed Nasal Endotracheal Tube 6.5mm Nasal Rae Tube Intubation

6.5mm X ray line with balloon PVC Medical Grade Endotracheal Tube Cuffed Nasal Endotracheal Tube

6.5mm Endotracheal Tube Cuffed Description:


HENAN AILE INDUSTRIAL CO., LTD is a company for operating medical disposables ,our main products are specialized in anesthesia products and respiratory products . In detailed, the anesthesia products include Standard Endotracheal Tube, Preformed Oral/Nasal Endotracheal Tube,Reinforced Endotracheal Tube.



Amoung them, the Standard Endotracheal Tube is a method of inserting a special endotracheal tube into the trachea or bronchus through the mouth or nasal cavity. And the Standard Endotracheal Tube Cuffed is one type of it, which has different size to adapt to different medical needs,including 3.0mm to 10.0mm.

Cuffed Nasal Endotracheal Tube 6.5mm Nasal Rae Tube Intubation 0

A cuffed nasal endotracheal tube is a type of nasal tube used for airway management and mechanical ventilation. It is similar to an uncuffed nasal endotracheal tube, but it also includes an inflatable cuff at the distal end of the tube.



Here are some important points about cuffed nasal endotracheal tubes:



  • Design: Cuffed nasal endotracheal tubes are typically made of flexible plastic or silicone material. They have a beveled tip for easier insertion through the nostril and advancement into the trachea. The cuff is located near the distal end of the tube and is inflated once the tube is in the proper position.



  • Cuff inflation: The cuff of a cuffed nasal tube is inflated to create an airtight seal within the trachea. This seal prevents air leakage and reduces the risk of aspiration. The cuff is usually inflated with air using a syringe, and the pressure is monitored to ensure it remains within the recommended range.



  • Advantages: Cuffed nasal endotracheal tubes offer several advantages, including improved ventilation control, reduced risk of aspiration, and the ability to provide positive pressure ventilation. They are commonly used in adult patients, particularly in critical care settings.



  • Considerations: When using a cuffed nasal endotracheal tube, it's important to carefully monitor the cuff pressure to avoid overinflation or underinflation. Overinflation can lead to tracheal damage, while underinflation may result in air leakage and inadequate ventilation. Regular monitoring and adjustment of cuff pressure are necessary to maintain an appropriate seal.

Cuffed Nasal Endotracheal Tube 6.5mm Nasal Rae Tube Intubation 1



The specific steps for using a cuffed nasal endotracheal tube are similar to those of other nasal intubation techniques, as described earlier. However, additional attention should be given to proper cuff inflation and monitoring to maintain a secure airway and effective ventilation. Healthcare professionals trained in airway management should follow established protocols and guidelines when using cuffed nasal endotracheal tubes.


Product composition and function :

  • The size of Endotracheal Tube Cuffed is 6.5mm.

    Murphy Eye can reduce the risk of occlusinon and maintaining airflow.

  • Wire coil can increase flexibility, provide effective resistance to kinking.

  • Intubation depth marks and pre-mounted 15mm connector.

  • 15mm connector hasn reliable connection to all standard equipment.

  • Smooth bevelled and carefully moulded hooded tip to assist intubation and to provide high patient safety and comfort.

  • High volume/low pressure cuff helps to ensure an efficient low pressure cuff seal, for intubation during long term ventilation.

                     Cuffed Nasal Endotracheal Tube 6.5mm Nasal Rae Tube Intubation 2          Cuffed Nasal Endotracheal Tube 6.5mm Nasal Rae Tube Intubation 3


Endotracheal Tube Cuffed Application Features:



Total size of Standard Endotracheal Tube(mm) 3.0/4.0/4.5/5.0/5.5/6.0/6.5/7.0/7.5/8.0/8.5/9.0/9.5/10.0
Application Features 1.Suitable for both oral and nasal intubation.
2.Tip-to-Tip X-ray line allows for safe positioning control.
3.Murphy eye incorporated as an additional safety feature.



Normal Endotracheal Tube Cuffed pressure:



One aspect of airway management is maintenance of an adequate pressure in the Endotracheal tube cuff. The cuff is inflated to seal the airway to deliver mechanical ventilation. A cuff pressure between 20 and 30 cm H2O is recommended to provide an adequate seal and reduce the risk of complications.
